Project: RMD17187 – RedSP – Small New Build
Location: Hampstead Hill Gardens, Hampstead, London NW3
Client: RedSP
Service Provided: Supply & Design of Composite Metal Floor Decking

A Bespoke Metal Decking Solution in the Heart of Hampstead

RMD Profiles recently completed the supply and design package for a new build residential project at Hampstead Hill Gardens, situated in one of North London’s most prestigious neighbourhoods. Working closely with main contractor RedSP, our team provided a tailored composite floor decking solution that met the structural, architectural, and programme requirements of this high-specification build.

Scope of Works

Our Supply & Design package included:

Composite Metal Floor Decking:

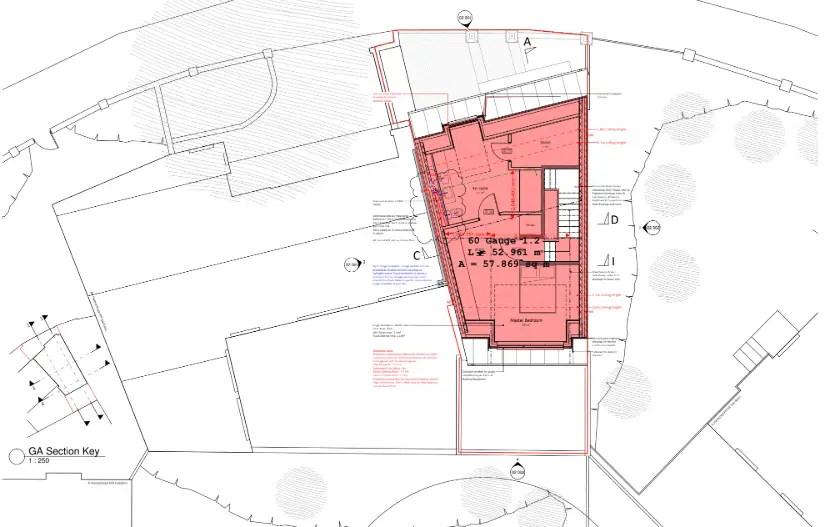

Installation designed using MetFloor 60 (1.2mm gauge) for both the first and second floor slabs, each with a 150mm slab depth. This profile was selected for its high load capacity, long-span performance, and ease of installation in confined urban sites.
Edge Trim & Detailing:

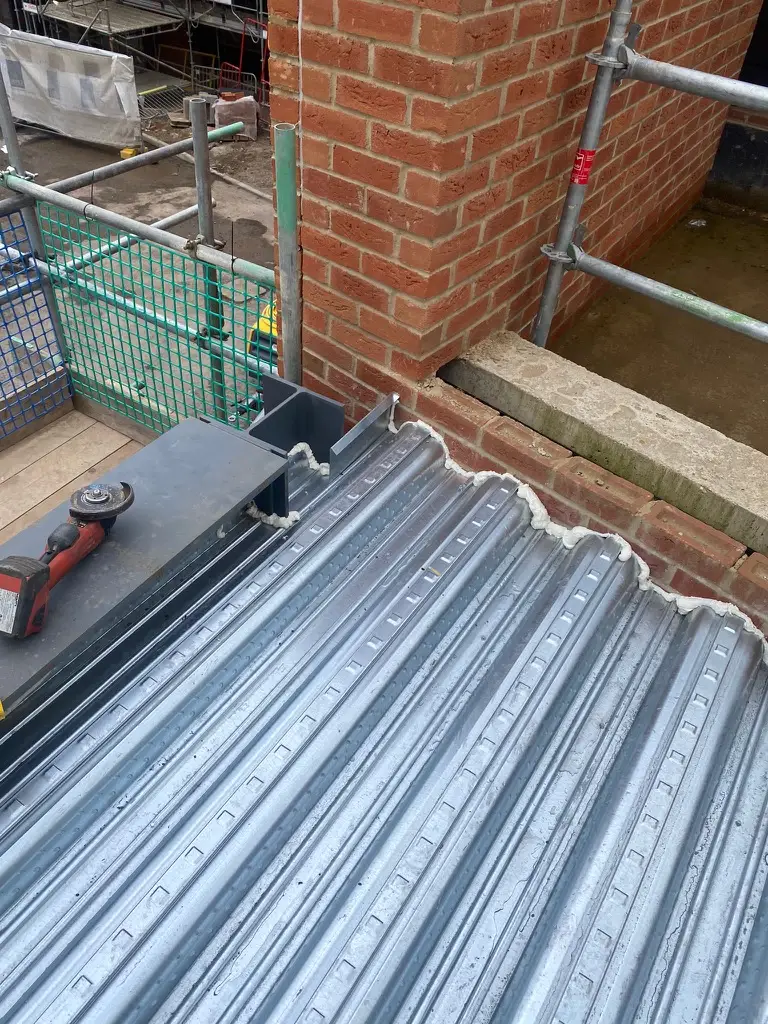

Precision-made 0.9mm girth edge trims (99 linear metres) to maintain correct slab depth and concrete containment.
Design Coordination:

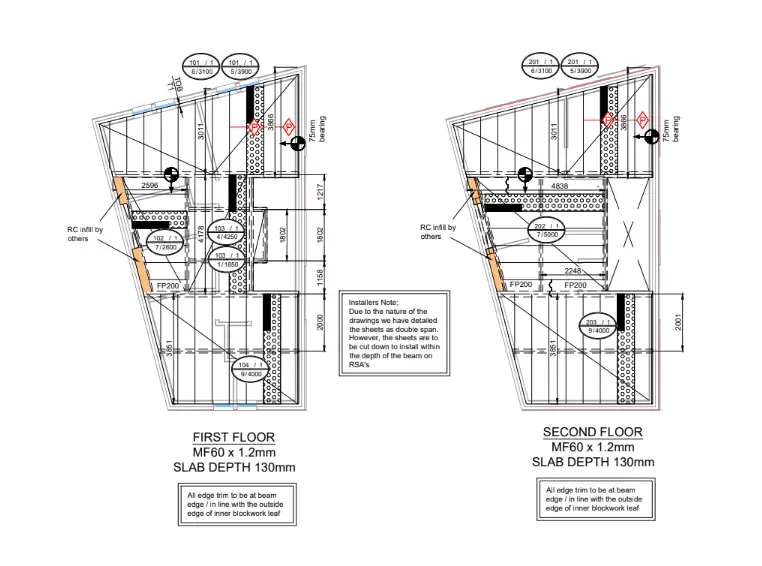

Full layout drawings showing deck pack orientation, paint mark guidance, and temporary propping requirements to ensure compliance with manufacturer guidelines and SCI P300 best practice.
Fixings & Accessories:
DX76-compatible red shot nails and consumables to facilitate efficient and secure installation.

Why MetFloor 60 Was the Right Choice

MetFloor 60 was chosen for its:

Exceptional spanning capability – unpropped spans over 4.5m, reducing the need for intermediate supports.
Fire performance – achieving up to 120 minutes fire resistance at specified slab depths without additional soffit protection.
Reduced concrete usage – optimising weight and cost without compromising performance.
Central stud positioning – ensuring excellent composite action between steel beams and concrete slabs.

Site Constraints & Design Considerations

The Hampstead Hill Gardens project presented several site-specific challenges:

Tight urban site access – requiring efficient material delivery scheduling and pack placement in coordination with the steel erection programme.
Neighbourhood sensitivities – careful planning to minimise noise and disruption in a high-value residential area.
Precision engineering – to accommodate architectural slab edge details and avoid clashes with M&E services.

By integrating early with the client’s team, RMD Profiles ensured that all slab edges, voids, and service penetrations were incorporated into the design before manufacture, preventing costly site alterations.

Commitment to Safety & Quality

In line with BCSA Code of Practice for Metal Decking and Stud Welding, RMD Profiles ensured:

Pre-installation site readiness checks.
Compliance with fall-arrest safety procedures, including safety net planning where applicable.
Adherence to manufacturer guidelines for temporary propping, concrete placement, and load control during curing.

Project Outcome

The Hampstead Hill Gardens new build now benefits from a robust, long-life composite floor structure, ready to support high-end residential finishes. By delivering a precision-engineered, compliant, and cost-effective decking system, RMD Profiles helped maintain the build programme while meeting the exacting standards expected in Hampstead developments.
